PGXL suddenly shutoff?

Support PGXL
1

My PGXL stoped working suddenly during SAC contest.

15M CW drive power ca 30W

setup:Flex 8600 sw4.2.20.41343

TGXL fw 1.2.17 (works superb)

PGXL S/N:6-100/21-0008 sw 3.9.1 i could here a fan but amp was dead. Switch of powerbutton and press stby/opr and switch on power. and touch blue dots.

After that i could start PGXL with PGXL utility. Using Contest mode and MEFA

Before the above when i moved the amp by lifting 2 cm i could here it start up shortly but stoped again.

As can be seen no activity during night

Any Ideea?

regards Lars SM4IVE

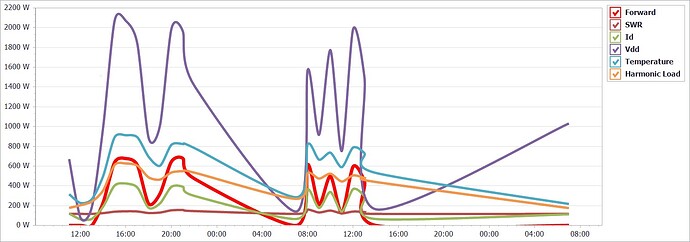

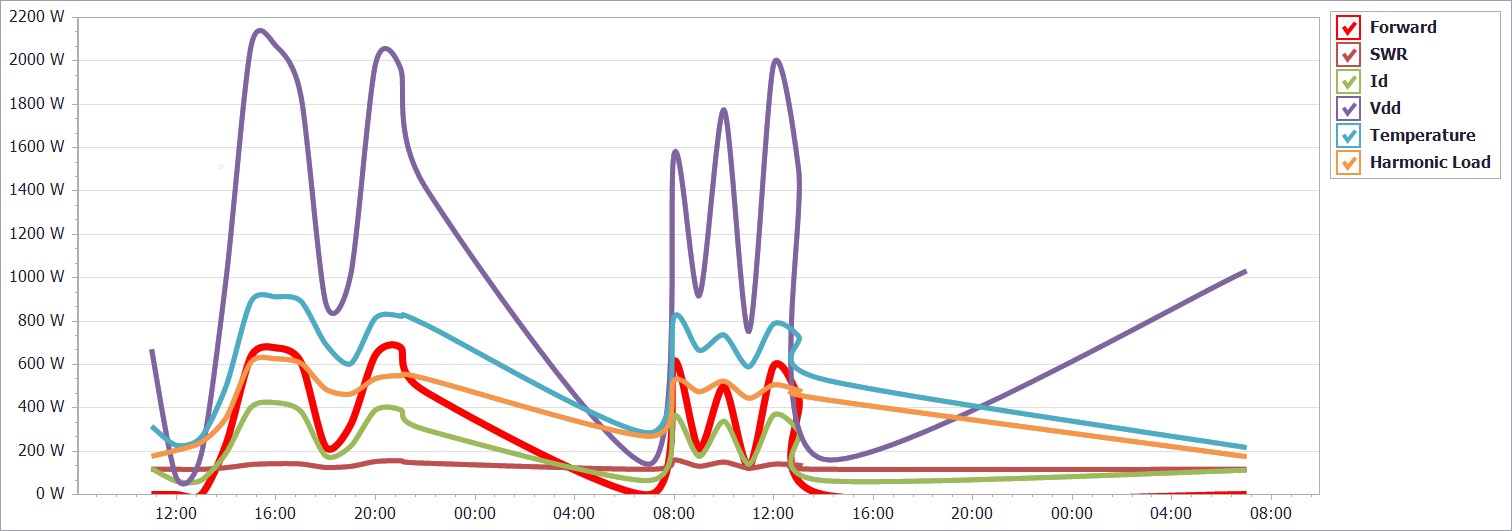

SAC sept
SAC sept1512×531 122 KB

2

Hello Lars,

Sorry to hear that!

What is the situation now, can you power on the PGXL at all?
This sounds like a bad cable connection rather then anything else?

If out of warranty I would open the unit and check the cable connections from PSU onward, with the amplifier unplugged from power?

If the amplifier turns on please send me a picture of the LCD screen?

73
Dragisa 4O9ITT

3

Yes it starts up and all looks ok in display i just work MST contest no problem.

i will look into it tomorow

73 Lars

4

Hello Dragisa

i did open the amp today and checked 2 red wires from PSU in to the Pwer module icheck that screws where tight all ok.

so maybe the on/of swich are bad? but i leave that on and i use a 220v wifi switch to turn off/on

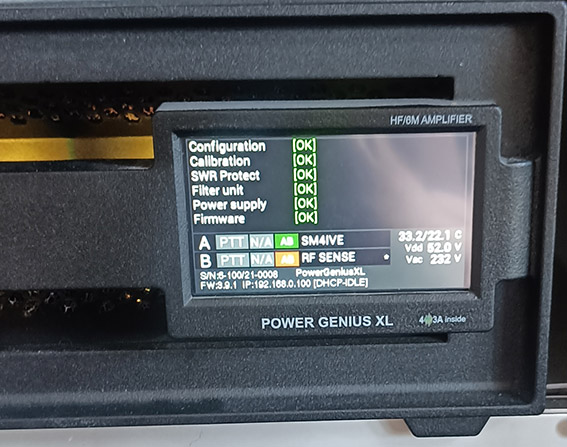

pgxl
pgxl567×447 77.3 KB
